| Camera | | Image Sensor: | 1/3" Progressive Scan CMOS | | Min. Illumination: | 0.07Lux @(F1.2,AGC ON),0 Lux with IR | | Shutter time: | 1/25(1/30) s to 1/100,000 s | | Lens: | 4mm@ F2.0 (2.8mm, 6mm optional)
2048 × 1536:
Angle of view: 86°(4mm), 70°(4mm), 43.3°(6mm)
1920 × 1080:
Angle of view: 98.5°(4mm), 79°(4mm), 49°(6mm) | | Lens Mount: | M12 | | Day& Night: | IR cut filter with auto switch | | Wide Dynamic Range: | Digital WDR | | Digital noise reduction: | 3D DNR |
|
| Compression Standard | | Video Compression: | H.264/M-JPEG | | Bit Rate: | 32 Kbps ~ 16 Mbps | | Audio Compression: | G.711/G.726/MP2L2 | | Dual Stream: | Yes |
|
| Image | | Max. Image Resolution: | 2048×1536 | | Frame Rate: | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720) | | Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser | | BLC: | Yes, zone configurable | | ROI: | Yes, up to 4 configurable areas |
|
| Network | | Network Storage: | NAS | | Alarm Trigger: | Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | | Security: | User Authentication, Watermark, IP address filtering, anonymous access | | System Compatibility: | ONVIF, PSIA, CGI, ISAPI |
|
| Interface | | Audio: | Internal Microphone and Speaker | | Communication Interface: | 1 RJ45 10M / 100M ethernet interface | | On-board storage: | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB | | Reset Button: | Yes |
|
| Wi-Fi Specification (-W) | | Wireless Standards: | IEEE802.11b, 802.11g, 802.11n Draft | | Frequency Range: | 2.4 GHz ~ 2.4835 GHz | | Channel Bandwidth: | 20/40MHz Support | | Modulation Mode: | 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM | | Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | | Transmit Power: | 11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm | | Receive Sensitivity: | 11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical) | | Transmission Rate: | 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps | | Wireless Range: | Outdoor: 200m,Indoor: 50m(depend on environment) |
|
| General | | Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) | | Power Supply: | 12 VDC ± 10%, PoE (802.3af) | | Power Consumption: | 5W MAX | | IR Range: | 10 meters | | PIR: | Angle of detection: 80°
Detection range: 10 meters | | Dimensions: | 66×91.5×131.3(2.60”×3.60” ×5.17”) | | Weight: | 400g(0.88lbs) |
|

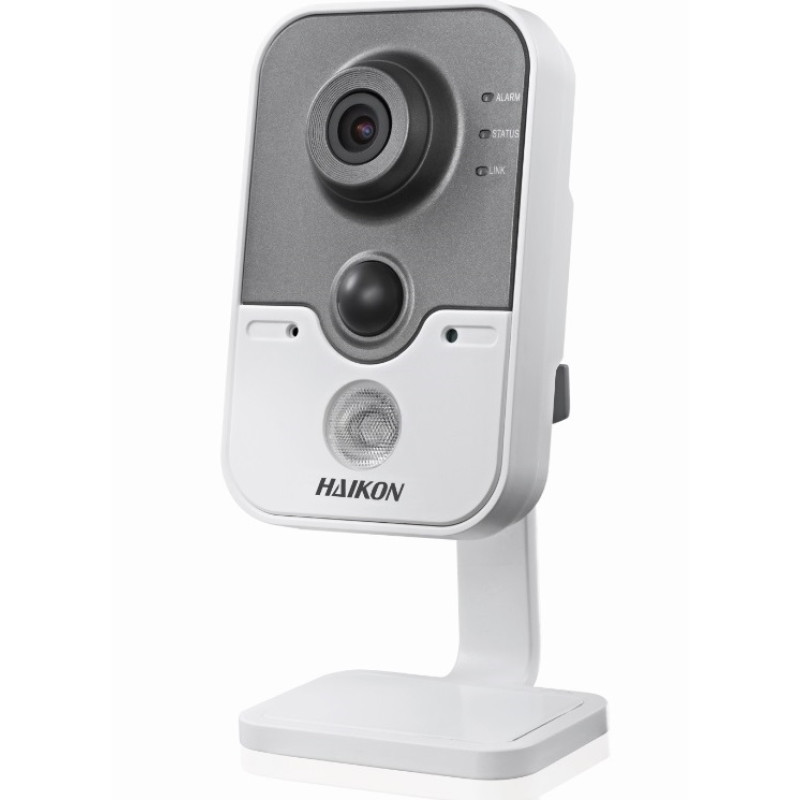

-500x500.jpg "HAIKON 3MP DS-2CD2432F-I IP 2.8mm 10metre IR Cube Kamera")
